General Vision Neuro Shield


Summary

The General Vision Neuro Shield provides neural network processing capabilities with integrated 6-axis IMU, temperature sensing, and micro SD storage for intelligent pattern recognition applications.

Description

This advanced shield combines neural network processing with motion sensing and data storage capabilities. It features a 6-axis IMU (accelerometer and gyroscope) for motion detection, temperature monitoring, and micro SD card interface for data storage and pattern libraries. The neural network supports classifiers and orientation detection, making it ideal for machine learning applications, gesture recognition, and intelligent pattern matching in embedded systems.

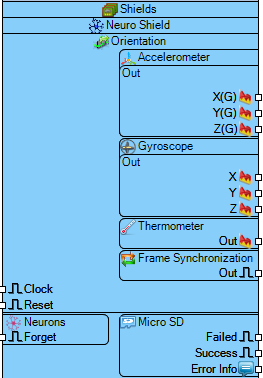

Diagram:

Properties

• Micro SD – Micro SD card interface:
  • Elements – SD card elements (Default: 0 items).
  • Enabled – Enables/disables SD card functionality (Default: True).
• Neurons – Neural network configuration:
  • Classifiers – Pattern classifiers (Default: 0 items).
  • Orientation – Orientation detection settings.
• Accelerometer – Acceleration measurement settings:
  • Full Scale Range – Acceleration measurement range (Default: a2g ±2g).
  • X – X-axis accelerometer settings:
    • Enabled – Enables/disables X-axis (Default: True).
    • Self Test – Self-test functionality (Default: False).
  • Y – Y-axis accelerometer settings:
    • Enabled – Enables/disables Y-axis (Default: True).
    • Self Test – Self-test functionality (Default: False).
  • Z – Z-axis accelerometer settings:
    • Enabled – Enables/disables Z-axis (Default: True).
    • Self Test – Self-test functionality (Default: False).
• Clock Source – Clock source selection.
• Enabled – Enables/disables IMU functionality (Default: True).
• Filter – Filter configuration.
• Frame Synchronization – Frame sync settings.
• Enable Interrupt – Enables interrupt functionality.
• Interrupt On Low Level – Low-level interrupt triggering.
• Location – Sensor location configuration.
• Gyroscope – Rotation measurement settings:
  • Full Scale Range – Gyroscope measurement range.
  • Units – Measurement units.
  • X – X-axis gyroscope settings:
    • Enabled – Enables/disables X-axis (Default: True).
    • Self Test – Self-test functionality (Default: False).
  • Y – Y-axis gyroscope settings:
    • Enabled – Enables/disables Y-axis (Default: True).
    • Self Test – Self-test functionality (Default: False).
  • Z – Z-axis gyroscope settings:
    • Enabled – Enables/disables Z-axis (Default: True).
    • Self Test – Self-test functionality (Default: False).
• Interrupt – Interrupt configuration:
  • Inverted – Inverts interrupt signal.
  • Latch – Latches interrupt.
  • On Frame Sync – Frame sync interrupt.
  • On Raw Ready – Data ready interrupt.
  • Open Drain – Open-drain output.
• Low Power Mode – Power saving mode:
  • Enabled – Enables low power mode (Default: False).
  • Sample Frequency – Sampling frequency (Default: 1.25Hz).
  • Sample Rate Divider – Sample rate division (Default: 1).
• Thermometer – Temperature sensing:
  • Enabled – Enables temperature measurement (Default: True).
  • In Fahrenheit – Uses Fahrenheit scale (Default: False).
• Name – Component identifier (Default: General Vision Neuro Shield).
